Graphic Interface

You can easily move back and forth between many view modes:

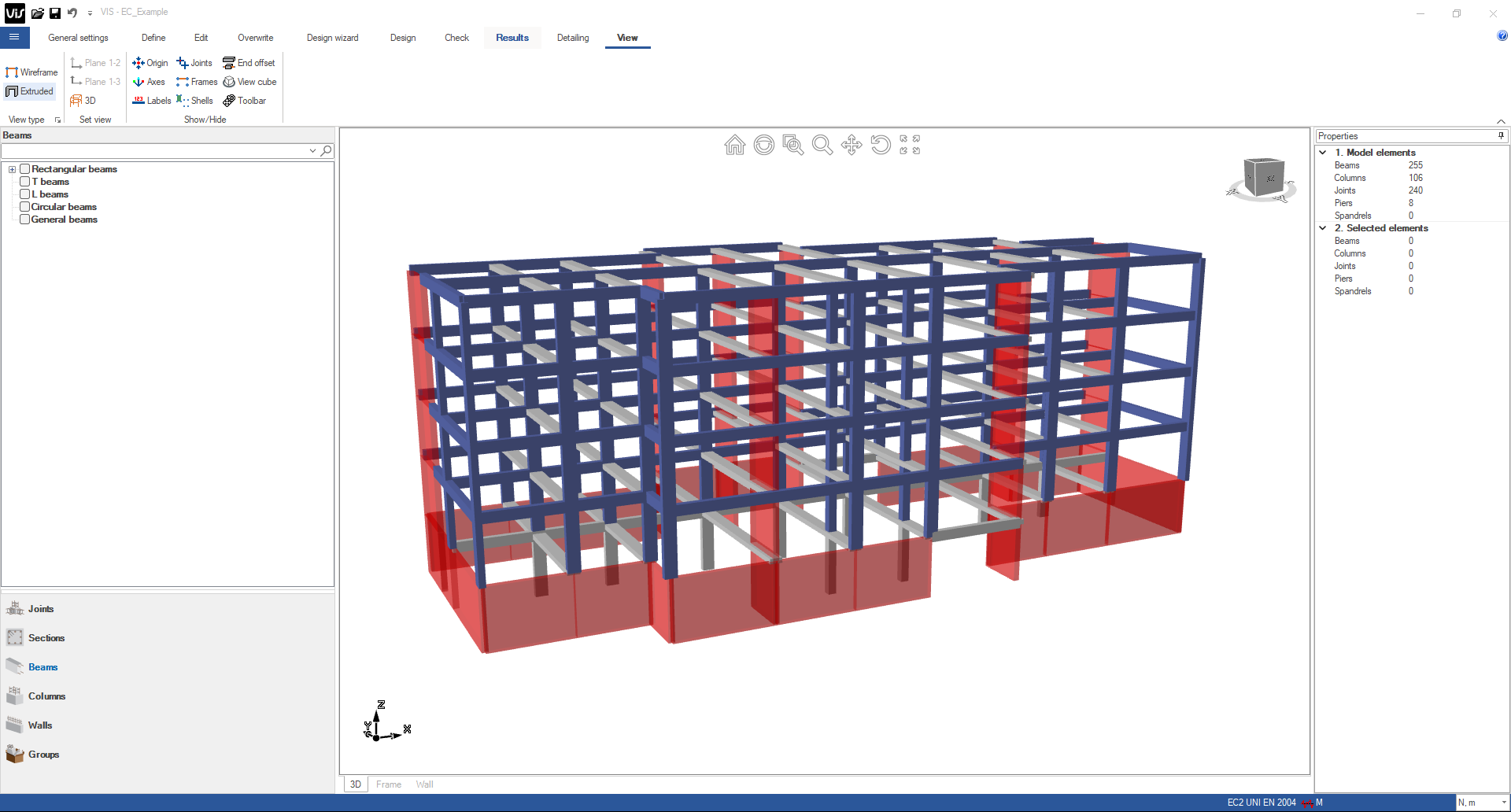

  • Full 3D view of entire structural model, complete of zoom, pan and rotations
  • Switch modes between wireframe and full extruded views
  • Switch modes between axonometric and planar projections

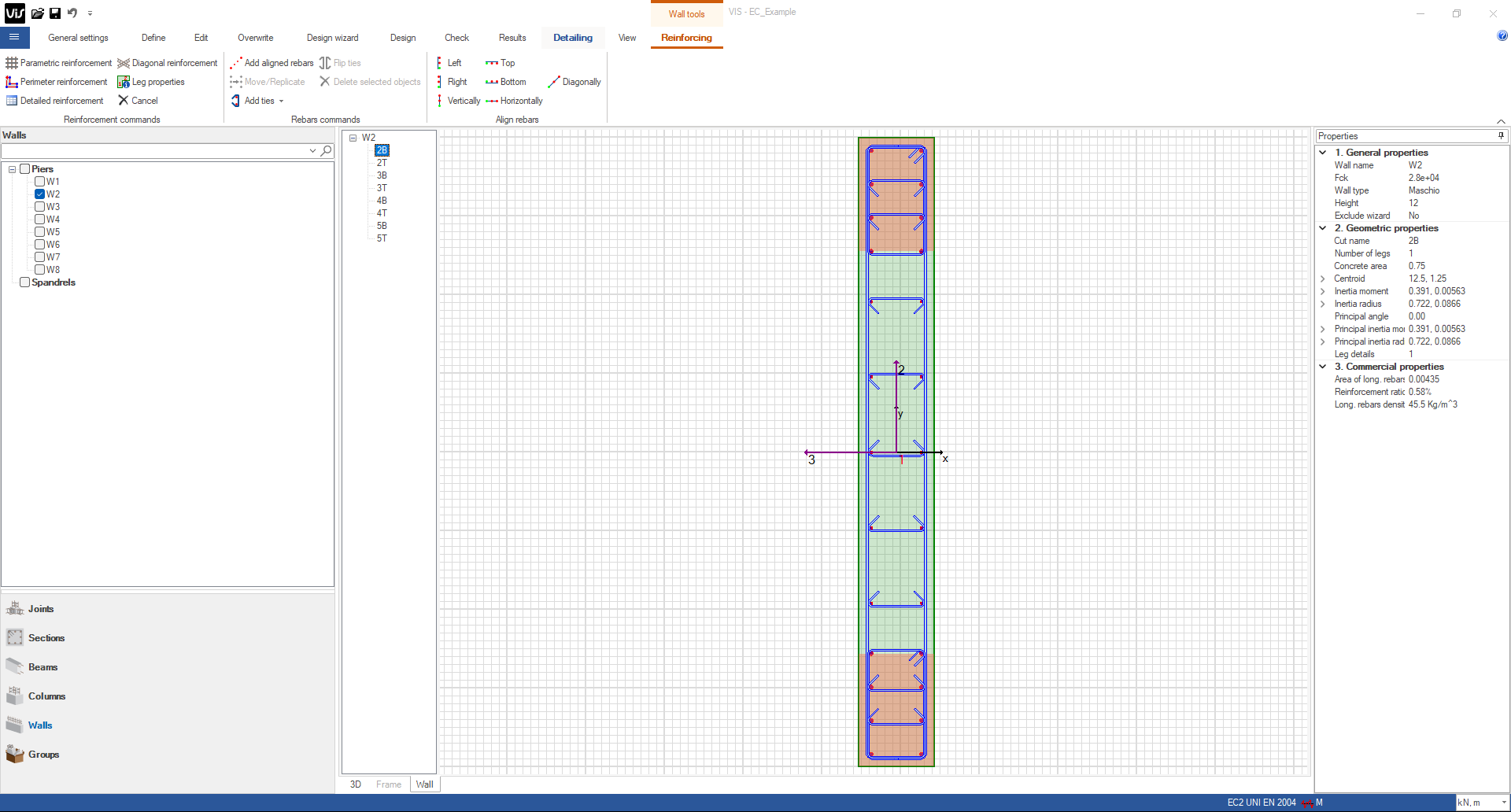

  • Detailed cross sections of all structural members, complete with longitudinal and transverse reinforcing
  • Detailed elevations of all structural members, complete of longitudinal and transverse reinforcing
  • Planar and 3D interaction diagrams
  • Ellipse of inertia of all cross sections

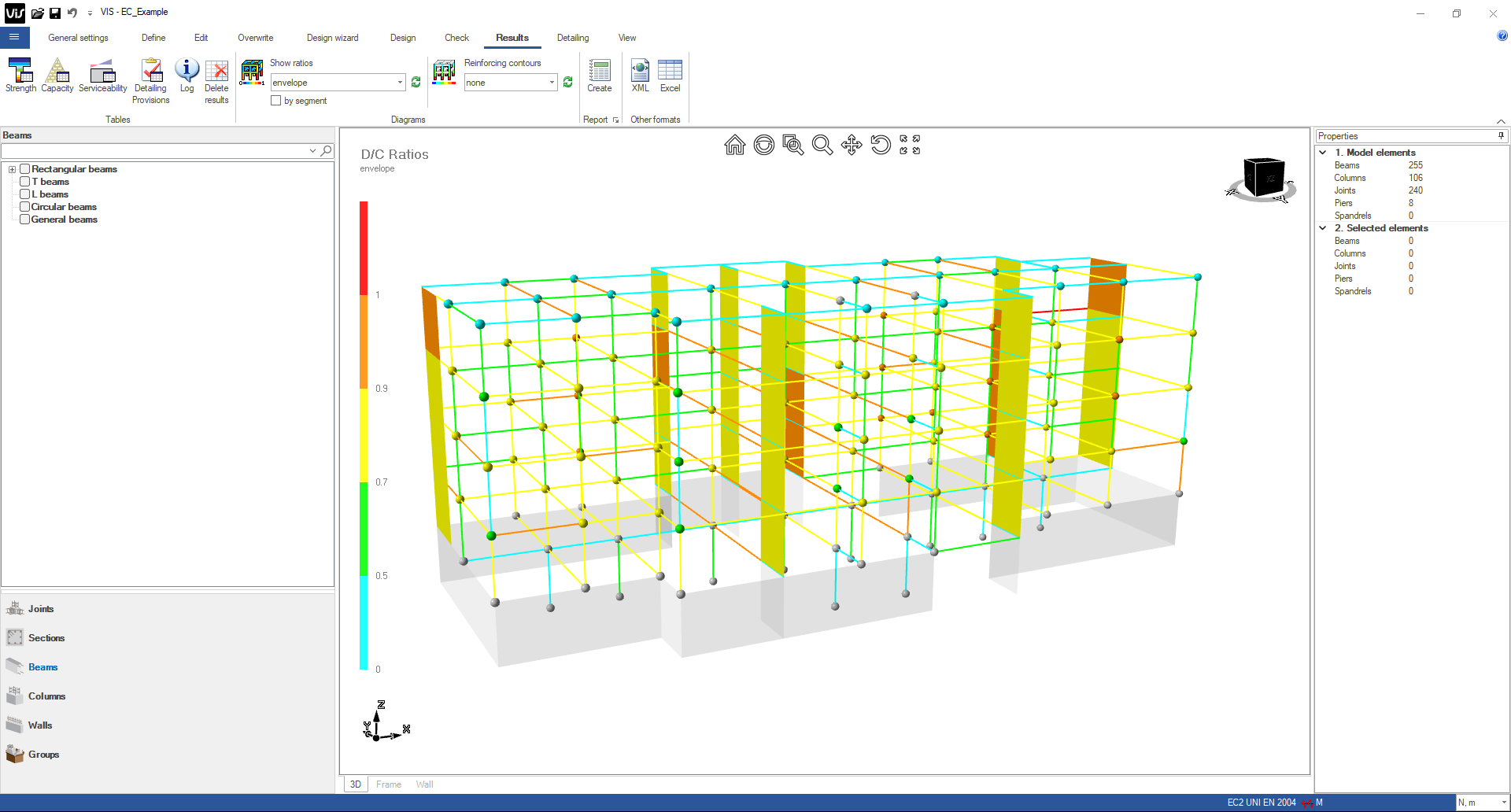

  • Full model color coded diagrams showing design results with Demand/Capacity ratios
  • Detailed drawings of reinforcing
VIS Software | Graphic Interface
click to enlarge

The Navigation Bar

VIS design features are organized in a tabbed ribbon, intended to simplify user access. The ribbon, on the upper part of the main window, includes all the program commands, prearranged in tabs and groups according to a logical sequence.



  • General Settings
  • Define
  • Edit
  • Wizard
  • Strength
  • Capacity
  • Serviceability
  • Detailing Provisions
  • Outputs
  • View
The display window, at the center of the screen, displays the various model views.
The navigation bar, on the left side, allows you to navigate and operate among model members.
The bottom bar provides general information and a switch control button between different units.


VIS Youtube Channel

See VIS Concrete Design Software in action when you visit our Youtube channel.
